Engranajes helicoidales internos

Módulo (mn): 0.5 – 4 Módulo
Ángulo de la hélice: 20°
Grado de precisión (A): ISO 7-8 Grade
Material: 42CrMo
Procesos de mecanizado:Transporte de energía
Tratamiento térmico: Templado y templado

24 Hour Quote

Capabilities Brochures

Descripción

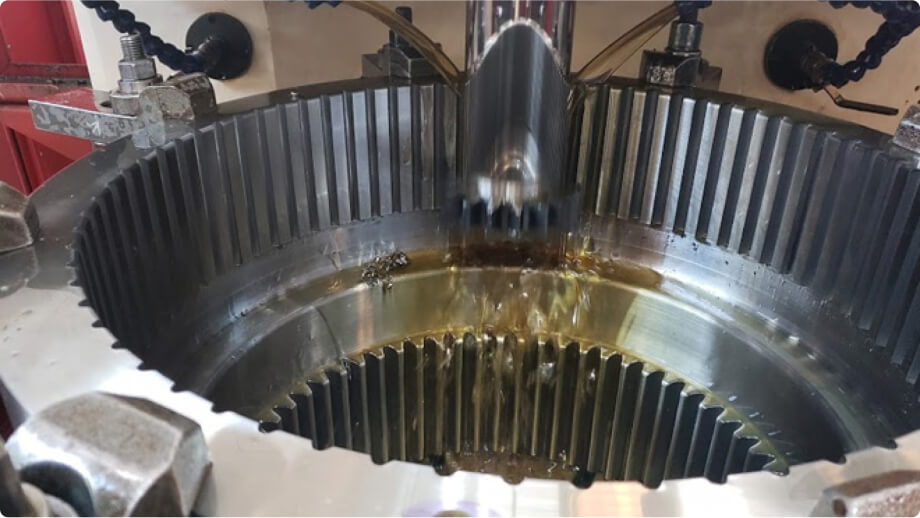

Engranajes helicoidales internos Power Skiving de 2 módulos Ángulo helicoidal de 45°

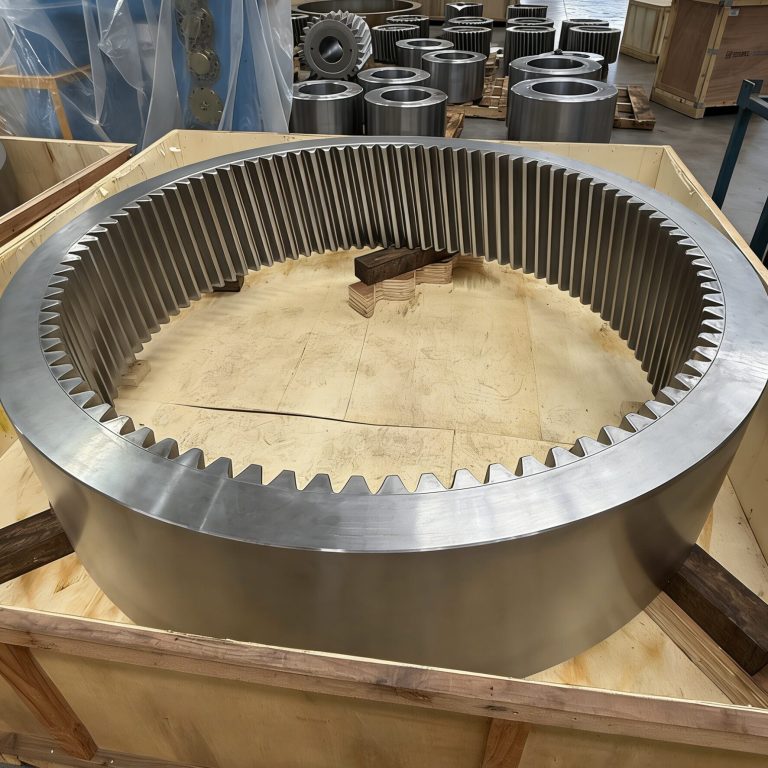

1) Descripción del engranaje helicoidal interno

Un engranaje helicoidal interno son engranajes con ángulo de hélice interno.

Un engranaje helcial interno necesita trabajar con un engranaje helcial externo de acoplamiento

2) Capacidad de producción de engranajes de hélice interna

Módulo: 0.5 – 4 Módulo

Dureza: 220- 260 HB

Tratamiento térmico: Temple y revenido

Datos técnicos

CHINA/GB	ISO	ROCT	ASTM	JIS	DIN
45	C45E4	45	1045	S45C	CK45
40Cr	41Cr4	40X	5140	SCr440	41Cr4
20CrMo	18CrMo4	20ХМ	4118	SCM22	25CrMo4
42CrMo	42CrMo4	38XM	4140	SCM440	42CrMo4
20CrMnTi		18XГT		SMK22
20Cr2Ni4		20X2H4A
20CrNiMo	20CrNiMo2	20XHM	8720	SNCM220	21NiCrMo2
40CrNiMoA		40XH2MA/ 40XHMA	4340	SNCM439	40NiCrMo6/36NiCrMo4
20CrNi2Mo	20NiCrMo7	20XH2MA	4320	SNCM420

Galería

Free Quote

OEM Customization Process

Demand Communication

Customers communicate with our sales team and put forward the customization requirements, including the type, size, material and precision requirements of gears.

Rich Product Types

According to the customer’s demand, our design team carries out gear design and draws detailed design drawings.

Production Processing

According to the design drawings and customer requirements, our production team adopts advanced production equipment and technology for production and processing.

Quality Inspection

The completed gears are subject to strict quality inspection, including the inspection of dimensional accuracy, surface quality, hardness and other parameters.
