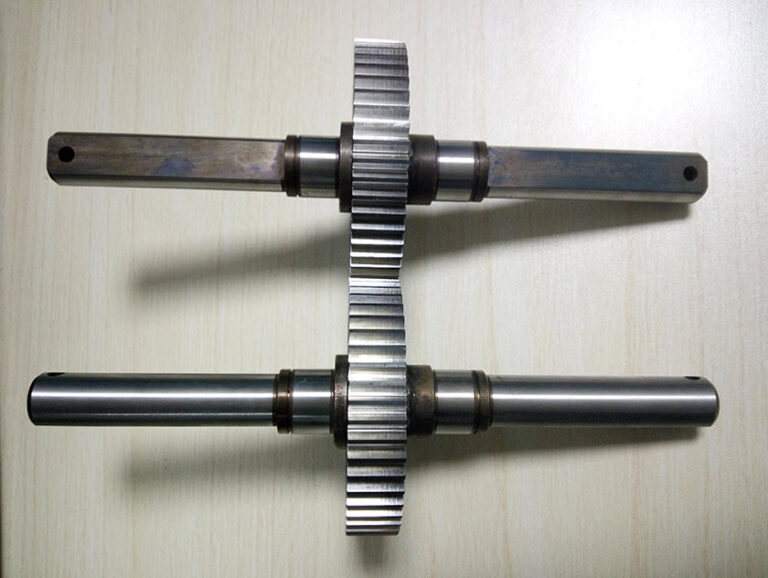

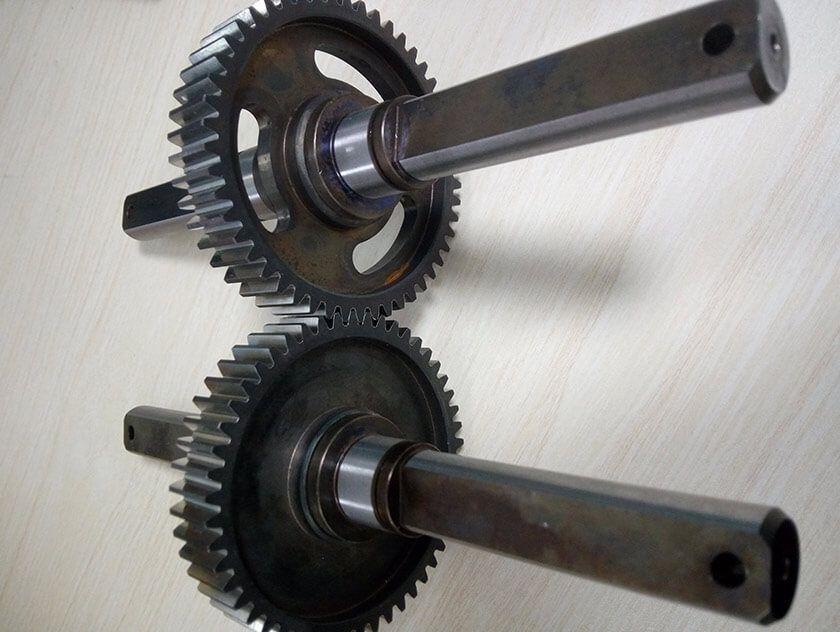

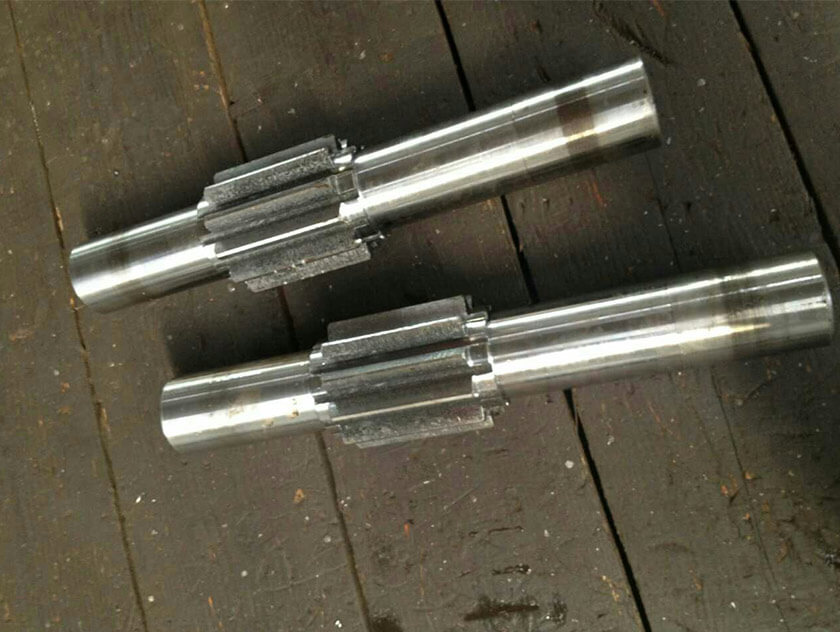

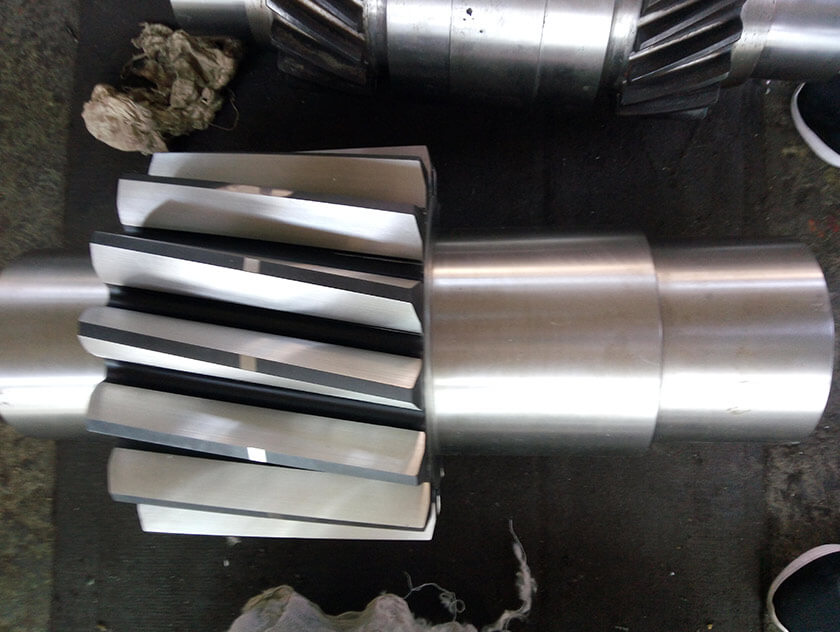

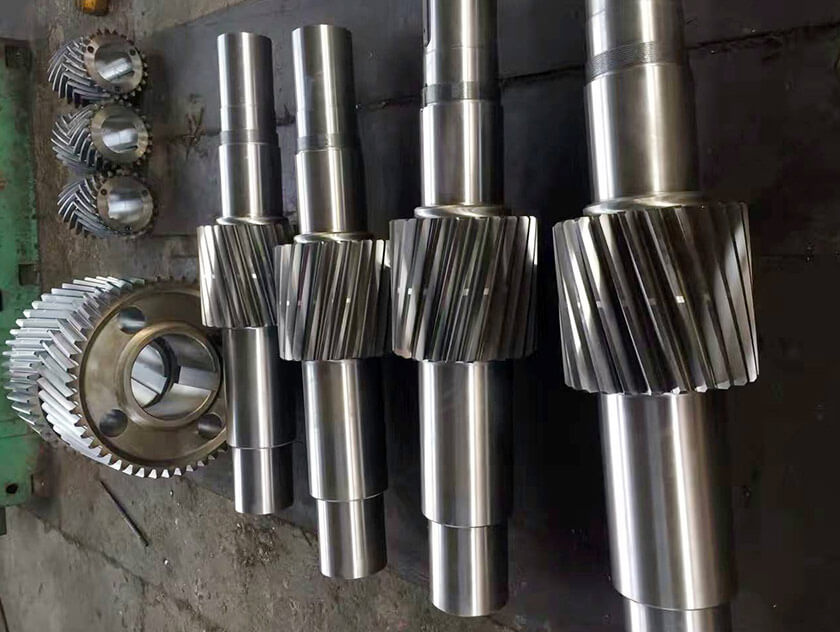

Transmission Gear Shaft

Material: 42CrMo
Heat Treatment: Quenching & Temperin
Profile: Inner Gear Ring
Pressure Angle: 20°
Quality Grade: ISO 8-9 Grade
Module: 7
Highlight: 42CrMo Spur Internal Ring Gear, Gear Shaping spur internal gear, Internal Ring Gear 62 Teeth

24 Hour Quote

Capabilities Brochures

Description

Transmission gear shafts are vital components in mechanical power transmission systems. They serve as the central support and connection elements that enable the integration and smooth operation of various gears, facilitating the transfer of rotational motion and torque from the power source to the driven components. These shafts are designed to work in harmony with different types of gears, such as spur gears, helical gears, bevel gears, etc., and are widely used across numerous industries where efficient and reliable power transmission is essential.

Technical Data

CHINA/GB	ISO	ROCT	ASTM	JIS	DIN
45	C45E4	45	1045	S45C	CK45
40Cr	41Cr4	40X	5140	SCr440	41Cr4
20CrMo	18CrMo4	20ХМ	4118	SCM22	25CrMo4
42CrMo	42CrMo4	38XM	4140	SCM440	42CrMo4
20CrMnTi		18XГT		SMK22
20Cr2Ni4		20X2H4A
20CrNiMo	20CrNiMo2	20XHM	8720	SNCM220	21NiCrMo2
40CrNiMoA		40XH2MA/ 40XHMA	4340	SNCM439
20CrNi2Mo	20NiCrMo7	20XH2MA	4320	SNCM420
					17CrNiMo6
					18CrNiMo7

Safety Protection

Free Quote

OEM Customization Process

Demand Communication

Customers communicate with our sales team and put forward the customization requirements, including the type, size, material and precision requirements of gears.

Rich Product Types

According to the customer’s demand, our design team carries out gear design and draws detailed design drawings.

Production Processing

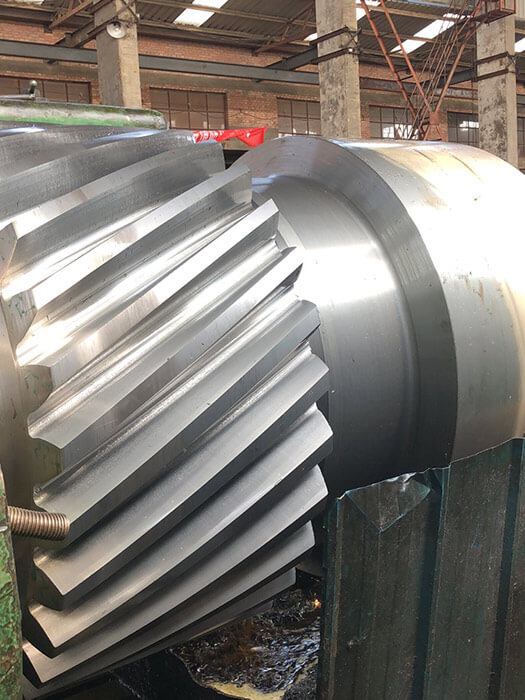

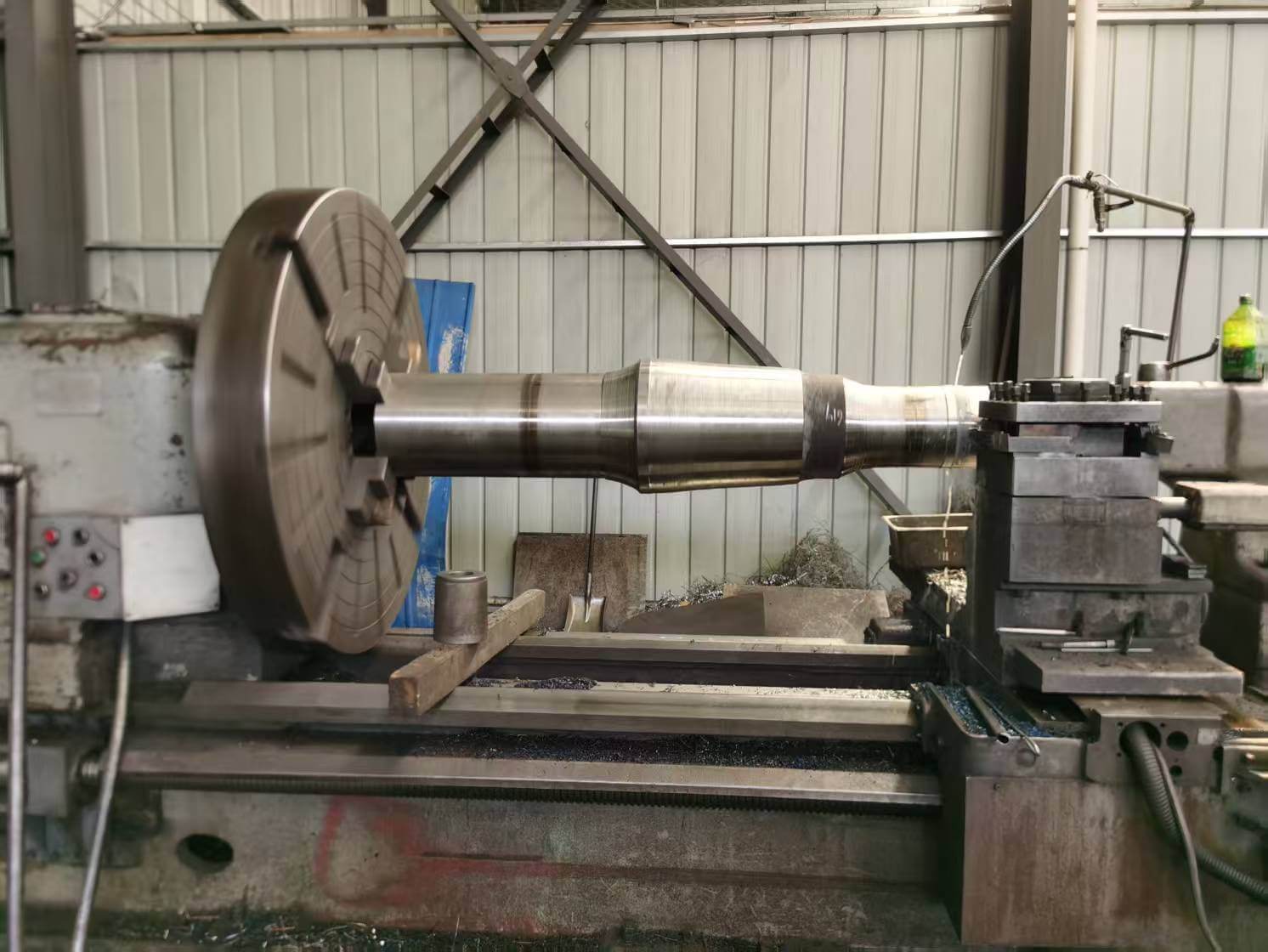

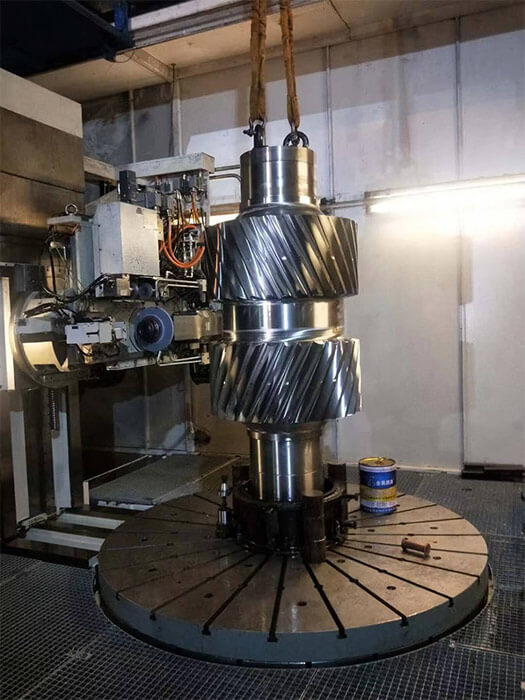

According to the design drawings and customer requirements, our production team adopts advanced production equipment and technology for production and processing.

Quality Inspection

The completed gears are subject to strict quality inspection, including the inspection of dimensional accuracy, surface quality, hardness and other parameters.
